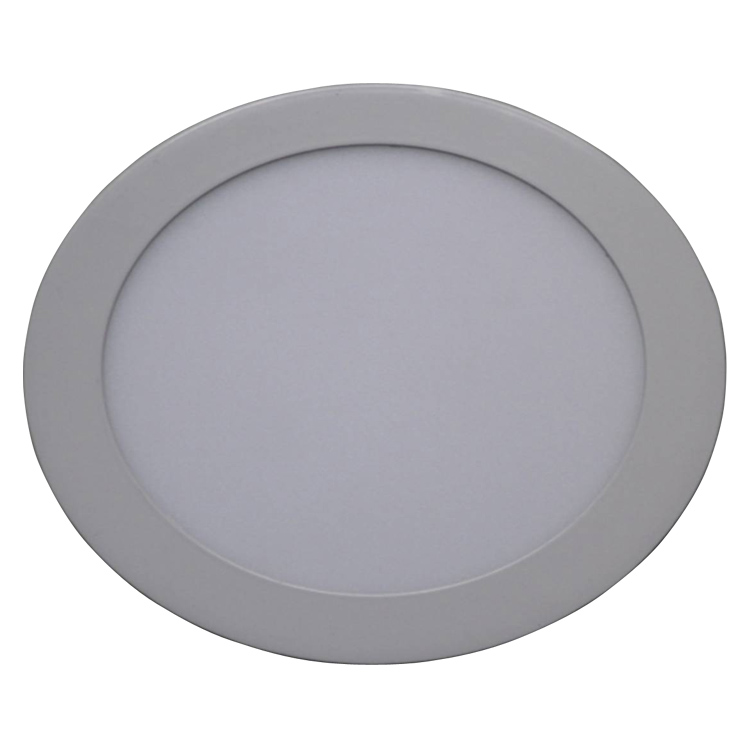

Round LED Panel Light

Round LED Panel Light
Product : Round LED Panel Light
Item : PLR90-18W



Details :

8" Side Lit Round LED Panel Light

Size: φ220 x H 20mm , cut-out:φ200mm

LED Chip: 90xSMD2835  , 0.2W 25lm, 100lm/w  Epistar

Beam Angle: 150°

Power: 18W

Luminous Flux: 1600lm

Efficacy: 70~90lm/w

P.F.>0.9

CRI: 75~85

Installation mode: N-Built / Mounting / Suspending

Lifespan: 30,000H

Material: Aluminum + PMMA /PC/PS Diffuser +4 mm LGP + MPCB board

CCT: 3000~6500K

LED Driver:  External Isolated Driver with CE/TUV/CUL/UL/SAA/PSE approves .
                       I/P:100~240VAC   50/60Hz,
                       O/P: DC24~48V   300A    PF>0.9

Dimmable:  PWM dimmer/DMX512 + Wireless controller(Optional)

Class Protection: IP40 (Indoor use only)

Central Illuminance (Lux):  1M=380lux         2M=100lux              3M=60lux

Package:  1pc/color box,
color box size: 230x230x55(mm),
20pcs/ctn, master carton box size:470x470x285(mm),
N.W.:16KGS, G.W.:18KGS


Certificates: UL/CUL. FCC. CE. ROHS
