Product : Round LED Panel Light
Item : PLR30-6W-C



Details :

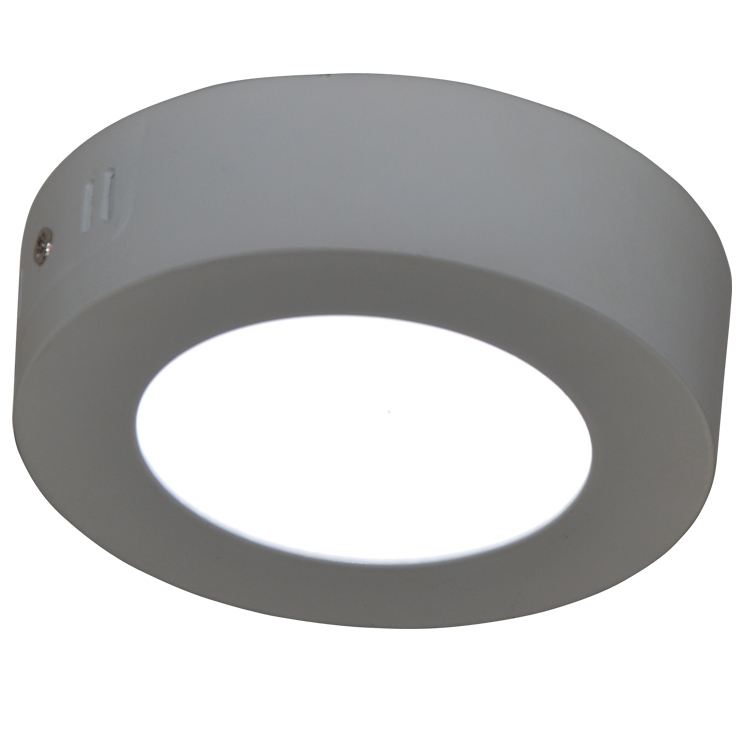

 4" Side Lit Round LED Panel Light

Size: φ120 x H 40mm , cut-out:φ100mm

LED Chip: 30xSMD2835  , 0.2W 25lm, 100lm/w  Epistar

Beam Angle: 150°

Power: 6W

Luminous Flux: 390lm

Efficacy: 70~90lm/w

P.F.>0.9

CRI: 75~85

Installation mode: N-Built / Mounting / Suspending

Lifespan: 30,000H

Material: Aluminum + PMMA /PC/PS Diffuser +4 mm LGP + MPCB board

CCT: 3000~6500K

LED Driver:  External Isolated Driver with CE/TUV/CUL/UL/SAA/PSE approves .
                       I/P:100~240VAC   50/60Hz,
                       O/P: DC24~48V   300A    PF>0.9

Dimmable:  PWM dimmer/DMX512 + Wireless controller(Optional)

Class Protection: IP40 (Indoor use only)

Central Illuminance (Lux):  1M=110lux         2M=30lux              3M=10lux

Package:  1pc/color box,
color box size: 130x130x55(mm), 40pcs/ctn,
master carton box size:530x530x560(mm),
N.W.:20KGS, G.W.:22KGS


Certificates: UL/CUL. FCC. CE. ROHS
