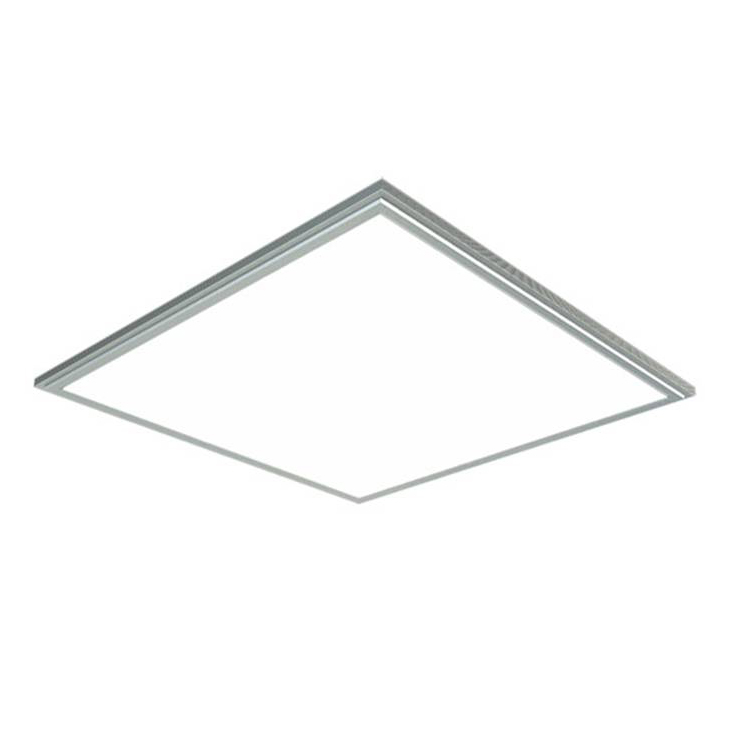

Side Lit LED Panel Light 42W 60x60

Side Lit LED Panel Light 42W 60x60
Product : Side Lit LED Panel Light 42W 60x60
Item : PL6060TX-42



Details :

 Side Lit LED Panel Light 42W 60x60

Model:PL6060TX-42

Size: 595x595x11 mm

LED Chip: 96xSMD5630 0.4W@125mA 3.2V 37lm  110lm/W Samsung

Beam Angle: 150°

Power: 42W

Luminous Flux: 2900lm

Efficacy: 70~90lm/w

P.F.>0.9

CRI: 75~85

Installation mode: N-Built / Mounting / Suspending

Lifespan: 30,000H

Material: Aluminum + PMMA /PC/PS Diffuser +4 mm Light Guide Board + MPCB board

CCT: 3000~6500K

LED Driver:  External Isolated Driver with CE/TUV/CUL/UL/SAA/PSE approves .
                       I/P:100~240VAC   50/60Hz,
                       O/P: DC24~48V   0.92A    PF>0.9

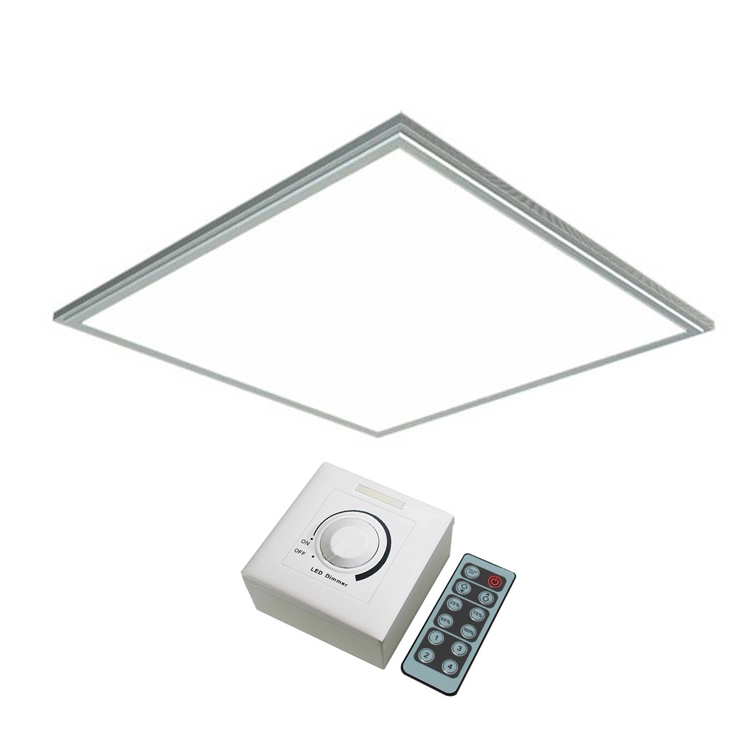

Dimmable:  PWM dimmer/DMX512 + Wireless controller(Optional)

Class Protection: IP40 (Indoor use only)

Central Illuminance (Lux):  1M=308lux         2M=77lux              3M=34lux

Package:  1pc/color box,    color box size: 625x625x40(mm),
                   6pcs/ctn, master carton box size:635x635x250(mm),
                   N.W.:19KGS, G.W.:21KGS

Certificates: UL/CUL. FCC. CE. ROHS
