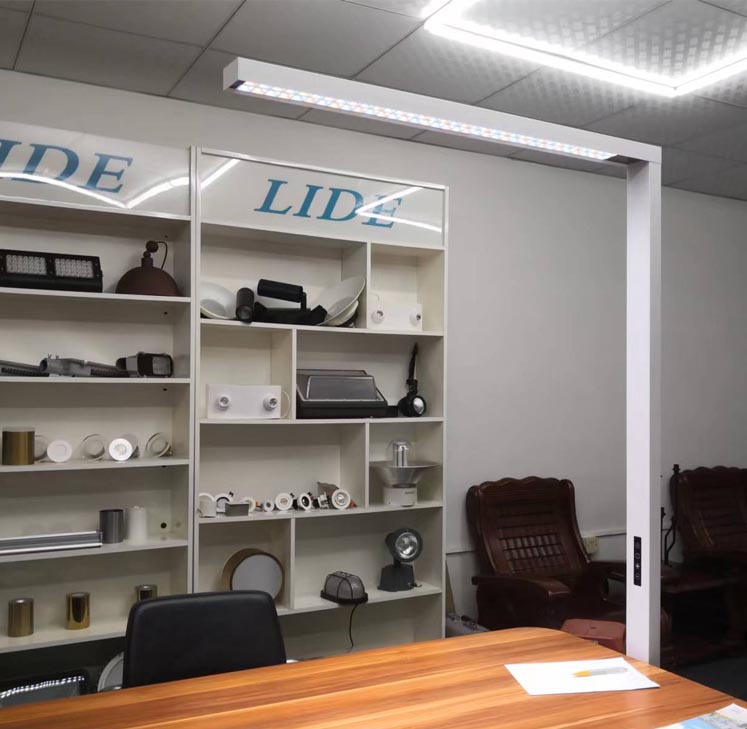

0-10V Dimming Switch Office LED Floor Lamp

Product : 0-10V Dimming Switch Office LED Floor Lamp
Item : HEL-046B02



Details :

0-10V Dimming Switch Office LED Floor Lamp Model No. : HEL-046B02 Power: 60W ( Direct 24W + Indirect 36W) Lumens: 9,000lm Efficiency : 150lm/w CRI>80 CCT: 3000K-4500K-6000K SDCM<5 (Tunnable white 3CCTs) LED chip: SMD2835 3V 1W 170lm Size: 2000x75x40mm Materials: Aluminum housing + Iron+PC reflector UGR<12 ( 4H/8H) Beam angle: 2x45° Switch : 0-10V knob dimming switch / touch dimming switch Switching cycles: >100,000 LED driver: 100-240VAC 50/60HZ, 24VDC 2.5A PF>0.95 free flicker, CE/TUV/SAA/UL/CUL certificates Lifetime: 50,000 hours Impact strength: IK05 for PC reflector, IK10 for AL housing. IP rating: IP20 indoor use only Protection class: I, with earth wiring Color: white/black/silver Power plug: 3 pins female power plug with VDE/CE/3C/UL/SAA certificates, 1.5m black cable 3x0.75mm2 VDE/ICE wire. Warranty: 5 years Packing: pear foam+master carton box, 1pcs/ctn, 113x20x13cm, N.W.: 13.2KGS, G.W.: 13.8KGS
