LED Blackboard Lights and backlit LED Panel Light

AUTHOR : HEL Date : 8/12/2019 3:40:28 AM

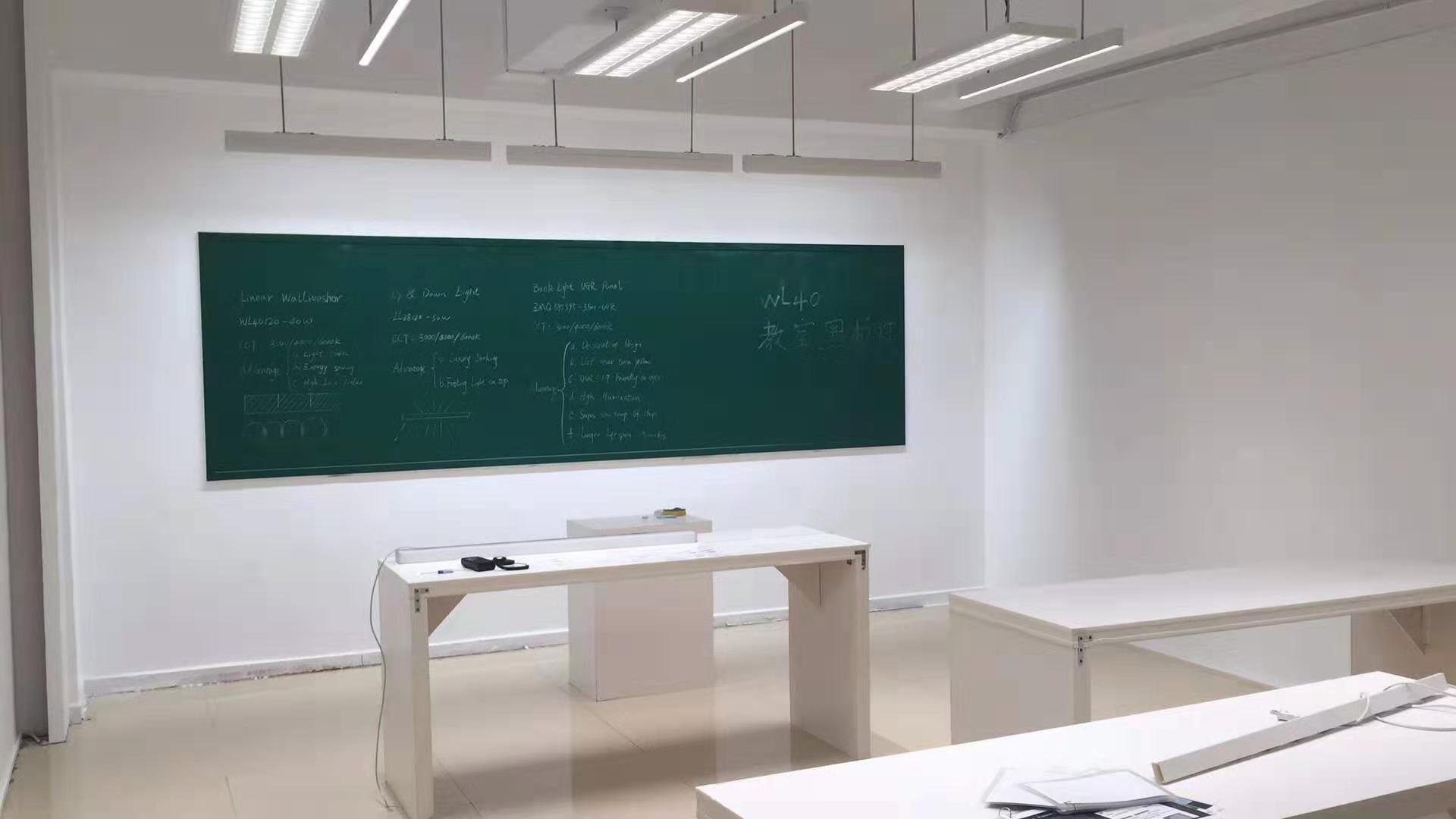

The following images are projects of LED Blackboard Lights and backlit LED Panel Light what we did.

Back-lit led panel lights: HEL-PL12030TX-36C-UGR

- Size: 1200x300x35mm
- Power: 36W
- Lumen: 5040lm
- High efficacy 140lm/w
- CRI>80
- CCT: 5000K it is good for school lighting
- with free flicker led driver (0-10V/DALI dimming)
- UGR<16, free glare
- suspending mounted frame on the ceiling

LED Blackboard light: HEL-LWL40120-50W
- Size: 1200x90x40mm
- Power: 50W
- Lumen: 5000lm
- High efficacy 100lm/w
- CRI>80
- CCT: 5000K
- with free flicker led driver (0-10V/DALI dimming)
- UGR<19 free glare
- suspending mounted frame on the ceiling

Linear LED Lights: HEL-LL28120-50W
- Size: 1200x70x28mm
- Power: 50W
- Lumen: 5000lm
- High efficacy 100lm/w
- CRI>80
- CCT: 5000K
- with free flicker led driver (0-10V/DALI dimming)
- UGR<19 free glare
- suspending mounted frame on the ceiling
